Za(c)ns 88 m³ | 4-axle tank wagon

Features

• The 88 m³ tank wagon is designed for the transport of white mineral oil and is compliant with the tank code L4BH, with a test pressure 4 bar.
• The wagon is designed and built in accordance with the RID and TSI regulations and corresponding EN / UIC standards.
• The wagon tare weight is 20.9t (equipped with ULT25 wheelset and standard brake) or 20.7t (equipped with ULT25 wheelset and CFCB brake).
• The working temperature is between -20 °C and +50 °C.
• The wagon has TEN GE marking for traffic operation.
• The wagon structure complies with EN 12663-2 and UIC 530-1 provisions for the mounting of an Automatic Coupler.

Capabilities

• The tank is loaded through the dome (fitted with flap cover with 4 screw) or through the DN 150 filling nozzle (optional).
• The system is operated from the track level on both sides of the wagon. There are T-pipes and side oblique valves DN 100 fitted for the liquid phase.
• There is a DN 50/2” connection on the gas phase.
• Different loading and unloading equipment fitted on the tank can be adapted in accordance with customers’ requirements.
• The 88 m³ tank wagon is designed to be manufactured and delivered under 4 configurations:
• underframe: with or without central kit, fixed along the tank, MODULAR solution
• brake: KE-GP-A(K), Kef-C distributor, in standard configuration (brake equipment of the wagon)or MH-GP-A(K) or with CFCB, both providing the basis for the further digitalization of freight wagons.

Advantages

• Reduced tare weight (20.9t or 20.7t, upon the brake configuration)
• Reduced wagon length (15.000 mm)
• Optimized tank capacity for light weight product transportation

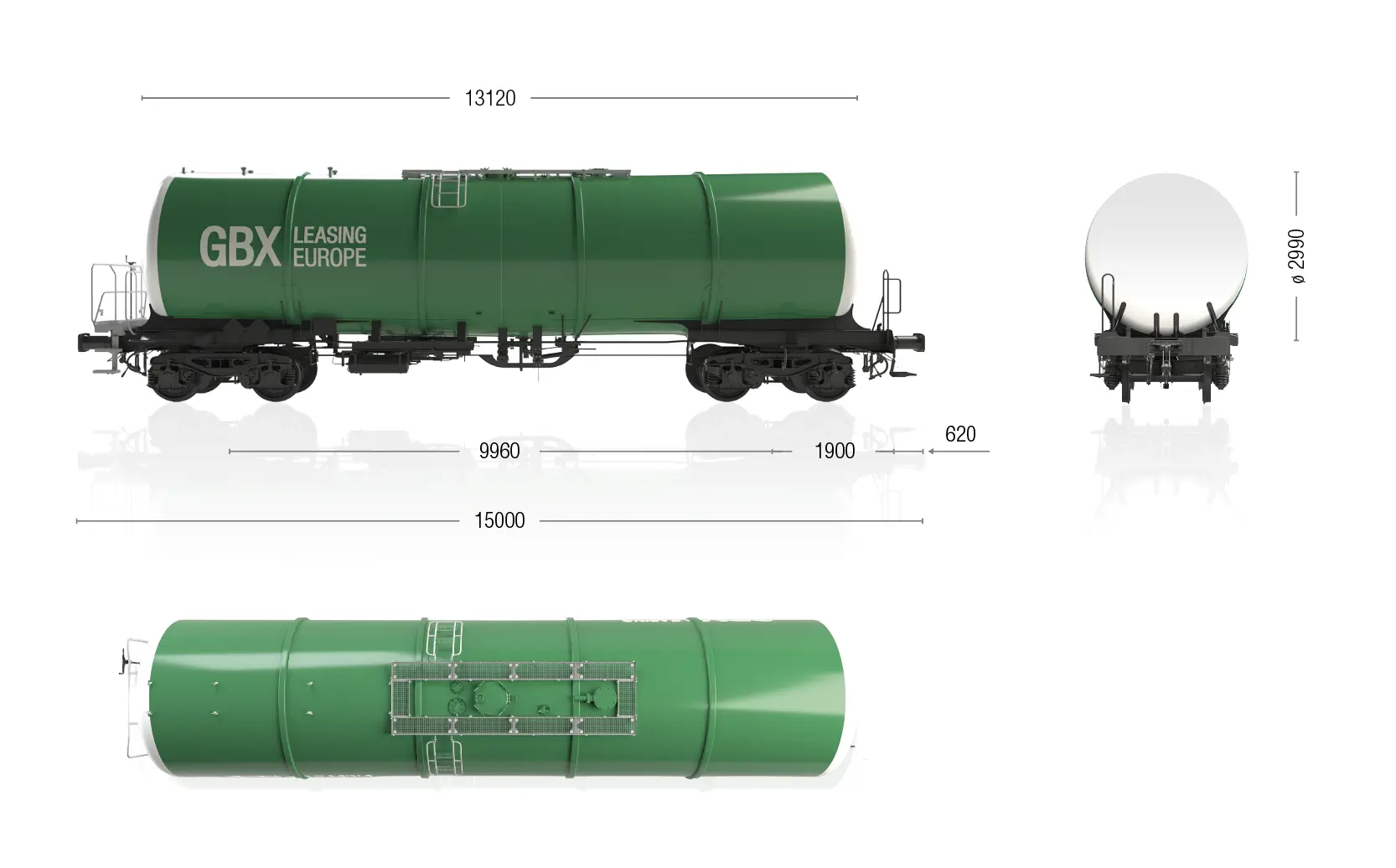

All measurements are in millimeters.
